Products



Wrenchman, Inc. designs and produces a full line of POSio cables to meet your POS migration needs.


Features:

Interface proprietary POS peripherals to open systems
Interface RS232 peripherals to proprietary POS systems
Direct replacements for expensive, hard to obtain IBM feature cards

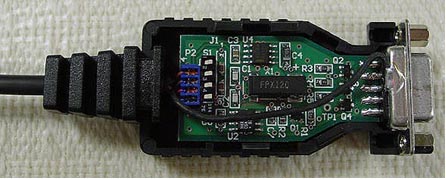

The latest in surface mount components built directly into cable connectors


Highest quality cable and connector materials for the ultimate in reliability
100% manufacturer compatibility
1 year limited warranty
Custom interfaces available



POSio CABLES STANDARD PRODUCT OFFERINGS:

Click on a highlighted product to obtain a datasheet

Use the product number to the right of the description when ordering

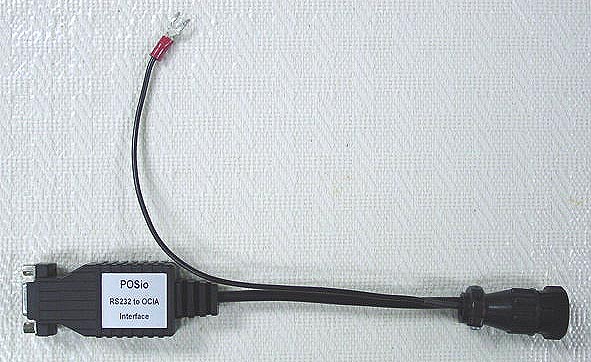

Proprietary Scanner/Scale to RS232 Interfaces
POSio RS232 to NCR 7824 Single Cbl. OCIA Scanner/Scale 7870 em. 10K15
POSio RS232 to NCR 7820/4 OCIA Scanner


10K13
POSio RS232 to NCR 7824 OCIA Scale 10K14
POSio RS232 to Spectra Physics 750F OCIA Scanner 10K13
POSio RS232 to Spectra Physics 760 OCIA Scanner 10K16
POSio RS232 to Spectra Physics 760 OCIA Scale 10K17
POSio RS232 to NCR 7870 OCIA Single Cable Scanner/Scale 10K44
POSio RS232 to NCR 7852 OCIA Scanner 10K20
POSio RS232 to Magellan OCIA Scanner/Scale  7870 emulation 10K61
POSio RS232 to Magellan IBM SIO Scanner/Scale 10K47
POSio RS232 to integrated IBM SIO Scanner/Scale 10K47
POSio RS232 to NCR 7852 OCIA Scanner   7870 Emulation 10K50
POSio RS232 DCE to Datachecker MDL Scanner/Scale 7870 emul. 10K54
POSio RS232 to NCR 7880 OCIA Scanner   7870 Emulation 10K62
POSio RS232 to NCR 4000 OCIA Scale 10K69
POSio RS232 to Magellan dual cable OCIA scanner port 10K75
POSio RS232 to Magellan dual cable OCIA scale port 10k76
POSio RS232 to Magellan SL dual cable OCIA scanner port 10K77
POSio RS232 to Magellan SL dual cable OCIA scale port 10K78
POSio RS232 Standard ASCII Protocol to Metrologic OCIA Scanner 10K91
POSio RS232 Standard ASCII Protocol to IBM SIO Scanner/Scale 10K93
POSio RS232 to NCR 7852 OCIA Scanner - ASCII Tag Data Output Only 10K98
POSio RS232 7870 Emulation to NCR 7890 Scanner 10K100
POSio RS232 Beetle Protocol to 46XX RS485 Scanner/Scale 10K127
POSio RS232 to OCIA/4 Bit Parallel Scanner/Scale 10K130



IBM 46XX Interfaces
POSio IBM 46XX SIO to Single OCIA Master Port 10K46
POSio IBM 46XX SIO to Dual OCIA Master Ports 10K37
POSio 468X/9X SIO port 9 to RS232 DCE Peripheral 10K9

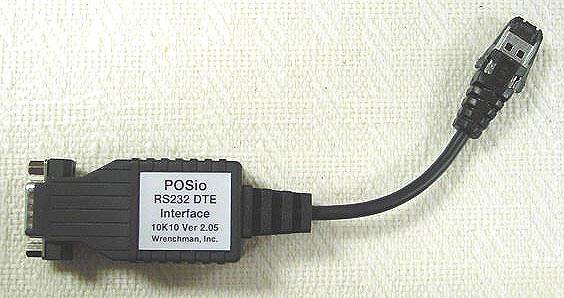

POSio 468X/9X SIO port 9 to RS232 DTE Peripheral


10K10
POSio 468X SIO J29 to Telequip Coin Dispenser 10K23
POSio IBM 469X SIO to Brandt TTL Coin Dispenser 10K25
POSio IBM 469X SIO to NCR 2010 Coin Dispenser 10K42
POSio IBM 469X SIO to Telequip Coin Dispenser 10K40
POSio IBM 46XX to Industry Standard RS232 Printer 10K22
POSio RS232 DTE to IBM SIO Model II Register Devices (Runs a Model.II from RS232) 10K49
POSio IBM 46XX port 5 to RS232 Scanner (register power) 10K55
POSio IBM 46XX port 9 to RS232 Scanner (external power) 10K60
POSio IBM 46XX port 17 to RS232 Scanner (register power) 10K66
POSio IBM 46XX SIO to RS232 Scantech Teraoka Scale (4696 emul.) 10K70
POSio IBM 46XX SIO to dual RS232 Scanner/Scale Ports 10K73
POSio IBM 46XX port 9 to RS232 Scanner (int. power conversion) 10K87
POSio IBM 46XX SIO Data Tap - Monitor Scanner, Keyboard, and Printer Data 10K105
POSio Fixed Baudrate Version of the POSio 10K9 adapter 10K114
POSio IBM 46XX to PSC Magellan 8X00 Scanner/Scale 10K117
POSio IBM 46XX Port 5 to RS232 Microvision hand Scanner 10K125-5
POSio IBM 46XX Port 9 to RS232 Microvision hand Scanner 10K125-9
POSio IBM 46XX SIO Data Tap With Enhanced Features 10K126
POSio IBM 46XX SIO Port 9 to 2 RS232 DB9 Peripherals (Dual Feature C Adapter) 10K131



NCR Terminal Interfaces
POSio NCR LCSIO to RS232 Peripheral -
POSio NCR OCIA to RS232    4430 Emulation 10K11
POSio NCR OCIA to RS232 DTE interface, NCR 5991 Emulation 10K51
RS232 Adapter, NCR 7452 Terminal to Metrologic Scanner 10K58
POSio NCR 2127 OCIA port to RS232 Scale Interface 10K45
Power Cable,10 ft. NCR 7452 pwr. port to IBM 4610 Printer 10K59
POSio NCR OCIA to RS232 Scantech Polaris Scanner 10K63
POSio NCR OCIA long format protocol to RS232 Scanner 10K72
POSio NCR 2127 OCIA port to RS232 Scanner/Scale Interface 10K92
POSio OCIA Single Cable Scanner Label Injector For NCR 2127 10K95
POSio OCIA EAN 14 Scanner Adapter for NCR 2127 10K99
POSio NCR 7452 Parallel Port to NCR 7450 2x20 display 10K101
POSio NCR 2127 Dual Scanner Interface - Allows AUX RS232 scanner w. Fixed Scanner 10K108
POSio OCIA Short Format Scanner Label Injector For NCR 2127 10K116



ICL TeamPOS Interfaces
POSio ICL TeamPOS 5000 Scale port to Spectra P. 760 scale 10K34
POSio ICL TeamPOS 5000 Scan. port to Spectra P. 760 Scanner 10K35
POSio ICL TeamPOS Scan. port to NCR Dual Cable 7870 Scanner 10K32
POSio ICL TeamPOS Scale port to NCR Dual Cable 7870 Scale 10K33
POSio ICL TeamPOS 5000 Scan. port to NCR Dual Cable 7824 10K18
POSio ICL TeamPOS 5000 Scale port to NCR Dual Cable 7824 10K19
POSio RS232 DCE to Datachecker MDL Peripheral 7870 emulation 10K54
POSio RS232 to NCR 7870 OCIA Single Cable Scanner/Scale 10K44



Misc. POS register Interfaces
POSio TEC MA-1650 Scanner Port to RS232 Scanner 10K64
POSio Fujitsu Atrium OCR port to RS232 Scantech Scanner 10K71
POSio Casio OCIA to RS232 scanner 10K74
POSio 4 Bit Parallel Casio 2100 Scale Port to RS232 Scanner/Scale 10K102
POSio OCIA Casio 2100 Scanner Port to RS232 Scanner/Scale 10K103
POSio Kit of 10K102 and 10K103 - Full RS232 Scanner/Scale support for the Casio 10K104
POSio OCIA ADS Anker to RS232 scanner 10K109
POSio TEC MA-1650 Scale Port to RS232 Scale 10K118
POSio Kit of 10K64 and 10K118 - Full RS232 Scanner/Scale support for the TEC 10K119
POSio RS232 Scanner/Scale to PC PS/2 Keyboard Port 10K128



USB Interfaces
POSio USB to RS232 DTE adapter


*Allows Effortless Connection of RS232 Peripherals to USB Hosts.

*Embedded USB Product ID and Description Fields Customizable for Larger Orders

10K112
POSio RS232 or RS485 to USB Host

*Allows Effortless Connection of USB Peripherals to RS232 or IBM 46XX Hosts

10K111
POSio USB to RS232 Peripheral - Unique USB Device Emulation

*Allows Effortless Connection of RS232 Peripherals to USB Hosts by Emulating a Customer Specified Unique USB Device

10K113



POSPower Adapters
POSio POSPower Adapter - PC Disk Power Plug to DB9 on ISA Bracket 10K94



RS232 Expanders and Converters

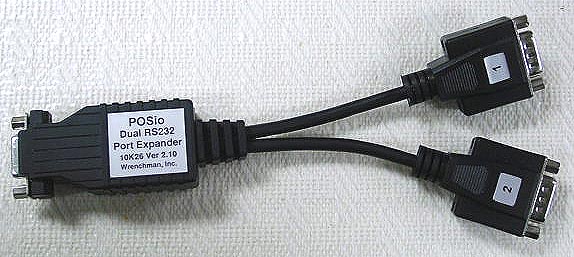

POSio RS232 Port Expander/Serial Switch


10K26
POSio RS232 Inline Protocol/Data Rate Converter/Filter 10K28



Misc. Peripherals
POSio RS232 Terminal to NCR 4430 PinPad 10K39

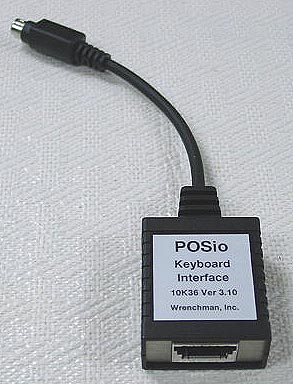

POSio PC keyboard port to IBM 469X SIO 50 key Keyboard


10K36
POSio RS232 Terminal to Dual OCIA Master Ports 10K38
POSio IBM/Axiohm/Epson Printer to IBM 46XX Cash Drawer 10K48
POSio Dual RS232 DCE Ports to OCIA Peripheral Interface 10K53
POSio RS232 Terminal to IBM SIO EFT Terminal Device 10K65
POSio RS232 Terminal to IBM SIO VF Display 10K67
POSio RS232 Powered/Controlled Optical Detector 10K88



Interfaces for Sales Data Export or Customer Loyalty Solutions
POSio OCIA Tap/Filter 10K80
POSio RS232 Tap/Filter 10K81
POSio IBM SIO Tap/Filter 10K83
POSio PC Keyboard Tap/Filter 10K84



Printer Interfaces
POSio NCR 1255 to RS232 Industry Standard Thermal Printer 10K5
POSio IBM 46XX to RS232 Industry Standard Thermal Printer 10K22
POSio DataChecker to RS232 Industry Standard Thermal Printer


10K21
POSio RS232 to IBM SIO Model II Printer 10K49
RS232 Cable, 10 ft. RS232 Terminal to IBM 4610 Printer 10K57
Power Cable,10 ft. NCR 7452 pwr. port to IBM 4610 Printer 10K59
POSio NCR 2127 to RS232 Axiohm Thermal Printer

Installation and Setup Guide

2127 PLU Add Batch File for 10K85 Configuration(20 char. PLU description)

2127 PLU Delete Batch File for 10K85 Configuration(20 char. PLU description)

2127 PLU Add Batch File for 10K85 Configuration(12 or 16 char PLU description)

2127 PLU Delete Batch File for 10K85 Configuration(12 or 16 char. PLU descriptions)

10K85 Configuration Barcode Scan Tags

10K85 Configuration Barcode Scan Tags (for version 2.04 and above)

10K85
POSio NCR 2127 to RS232 IBM Thermal Printer 10K86
POSio NCR 7052/3 to RS232 Industry Standard Thermal Printer 10K89
POSio NCR 7052 Model 5000 to RS232 Standard Thermal Printer 10K90
POSio IBM 46XX to RS232 Standard Thermal Printer with Enhanced Features 10K106
POSio NCR 7050 LCSIO to RS232 Standard Thermal Printer 10K107
POSio SASI TTL to USB Standard Thermal Printer 10K110
POSio NCR 7052 to RS232 Standard Thermal Printer with Enhanced Features 10K115
POSio NCR 2127 to Axiohm A758 Thermal Printer with Enhanced Features

Installation and Setup Guide

See 10K85 for 2127 Batch Files and Configuration Tags

10K120
POSio IBM 46XX to Axiohm 7156 Thermal Printer with Enhanced Features

(See 10K85 for Configuration Tags)

10K121
POSio NCR 2127 to IBM 4610 TI1 Thermal Printer with Enhanced Features

Installation and Setup Guide

2127 PLU Add Batch File for 10K122 Configuration

2127 PLU Delete Batch File for 10K122 Configuration

10K122 Configuration Barcode Scan Tags

10K122



Passive Data Collection and LAN
NCR 1255 to Data Collection PC 10K1
NCR 1255 Controller Replacement Board 10K4
POSio NCR 2126/2127 to Data Collection LAN


10K3
NCR 2127 ISP Controller 10K30



468X Mainboard Replacement
4683 Replacement Board Upgrade 10K6
4684 Replacement Board Upgrade 10K7



Passive Cables
Cable: RS232 DB9 DCE to DB9 DTE 6 ft with power Y for 10K62 10K62-Y
Cable: IBM SIO port 9 to NCR 7870 Scanner/Scale 9A-7870
IBM SIO port 9 "Y" Cable
IBM SIO port 5 "Y" Cable
NCR 2127 OCIA port to NCR 7052 Stewart Receptacle (Adapts peripherals with a NCR 7052 type Stewart plug to operate on the NCR 2127) 10K97
NCR 2127 RS232 port to standard DB9 male connector (adapts standard RS232 peripherals to connect up to the NCR 2127) 10K96



Media Duplicators
Compact Disc/DVD Duplicator 10K82



Products Under Development

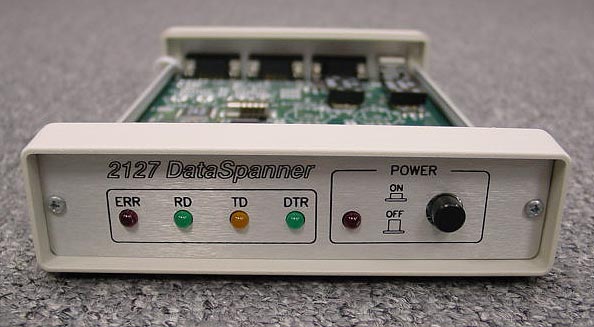

DataSpanner Store Network Controller


-
IBM SIO port 9 to 5/9/(7) with Power Conversion -
NCR 7870 Dual Display "Y" Adapter Cable -



Custom Interface Solutions Available On Request
